Important Diagrams for CBSE Class 10 Science

Science diagrams are visual keys that unlock complex concepts and make them easier to understand. CBSE Class 10 Science Important Diagrams play a crucial role in helping students grasp difficult topics across Physics, Chemistry, and Biology. The importance of diagrams cannot be overstated when it comes to CBSE board exams. Examiners often award full marks for well-drawn, properly labelled diagrams, even if the theoretical explanation might have minor gaps.

Continue reading to find all the essential important diagrams for class 10 science.

CBSE Class 10 Science Important Diagrams – Physics

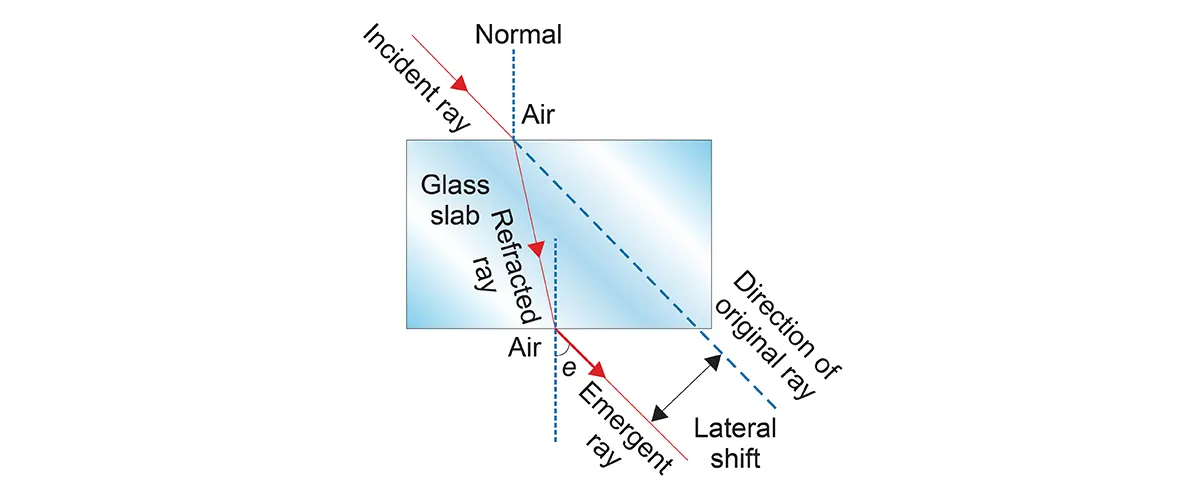

1. Refraction of Light through Glass Slab

Shows light bending when passing from air to glass and back to air. Draw rectangular glass slab with incident ray hitting surface at an angle. Normal line is perpendicular to surface at incidence point. Refracted ray bends towards normal when entering glass (denser medium) and away from normal when exiting to air. Mark angles of incidence (i) and refraction (r). Emergent ray is parallel to incident ray but laterally displaced. This is one of the most frequently asked important diagrams for class 10 science in optics chapter.

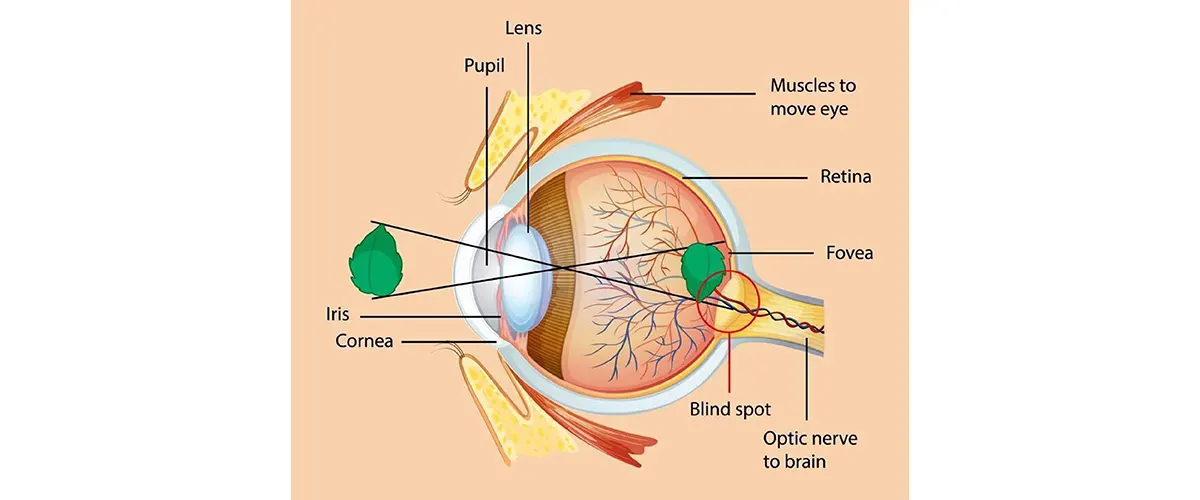

2. Human Eye Structure

Draw spherical eyeball (diameter ~2.3 cm) showing essential parts. Cornea is transparent front bulge where most light bending occurs. Iris controls pupil size to regulate light entry. Crystalline lens fine-tunes focus for different distances. Light forms inverted real image on retina (light-sensitive layer with photoreceptor cells). Include blind spot where optic nerve connects. This science diagram for class 10 requires careful attention to proportions and labelling.

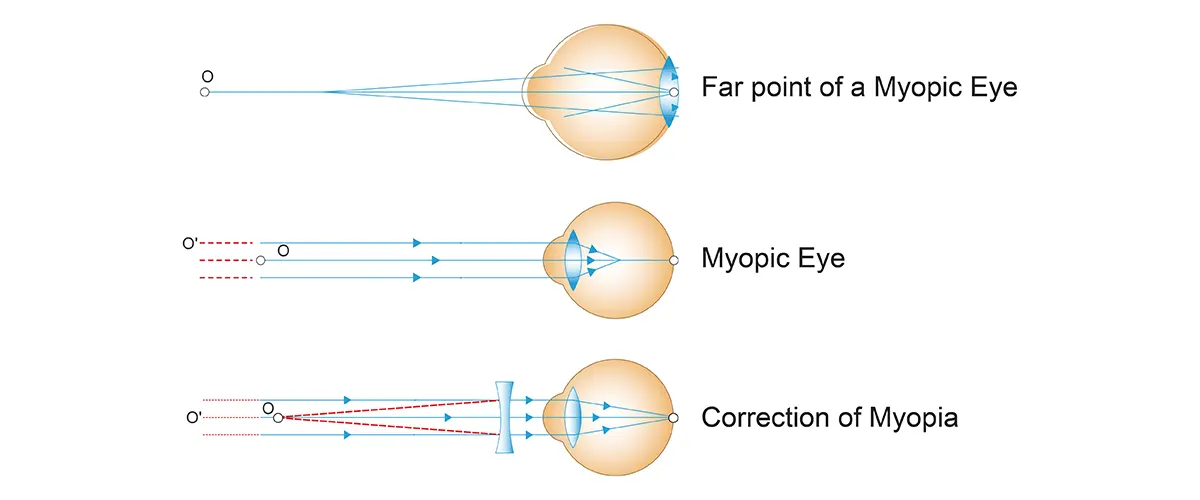

3. Myopia (Short-sightedness)

Draw elongated eyeball or excessive lens curvature. Parallel rays from distant object converge in front of retina instead of on it, causing blurred distance vision. Far point is closer than infinity. Show correction using concave (diverging) lens placed in front of eye. Concave lens diverges light rays before entering eye, helping them focus correctly on retina for clear distant vision. Understanding this important diagrams for class 10 science helps students grasp vision defects clearly.

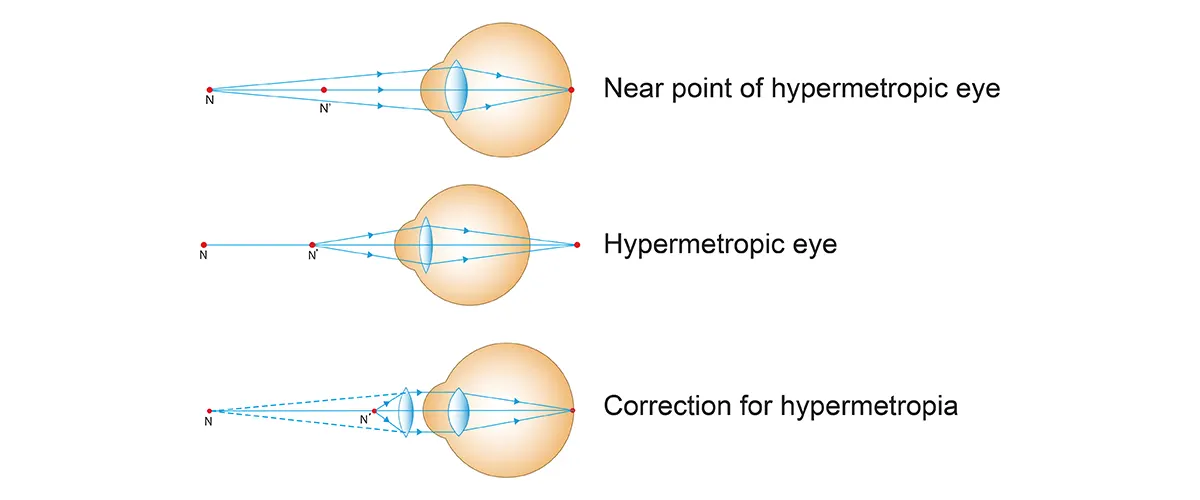

4. Hypermetropia (Long-sightedness)

Draw shortened eyeball or insufficient lens curvature. Light rays from nearby objects focus behind retina instead of on it, causing difficulty in near vision. Near point is farther than normal 25 cm distance. Show correction using convex (converging) lens that provides additional converging power. This brings image forward to focus exactly on retina, enabling clear near vision. This 10th science diagram is essential for understanding lens corrections.

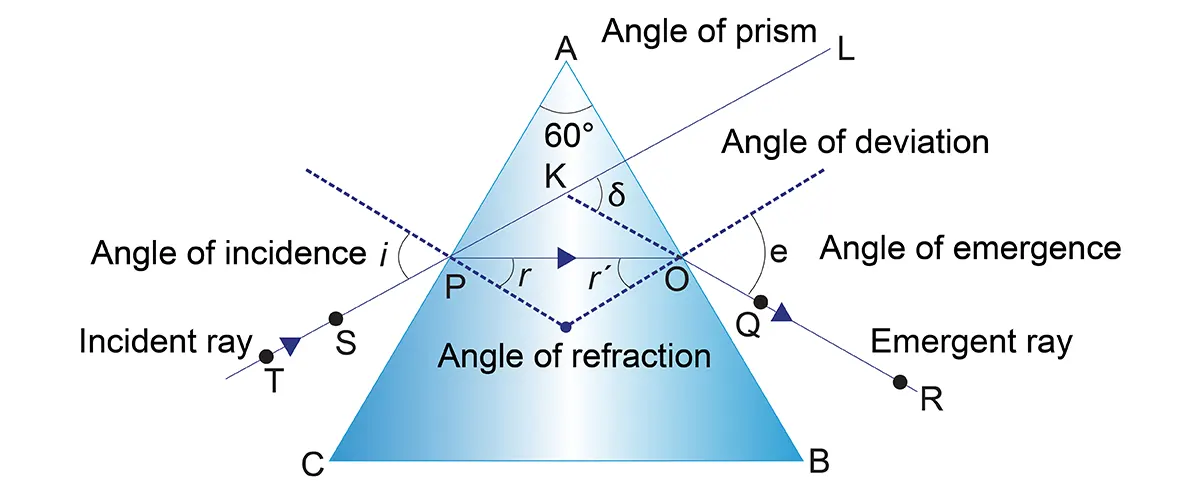

5. Refraction through Triangular Prism

Draw equilateral triangular prism with white light entering one face. Show incident ray, refracted ray inside prism, and emergent ray. White light splits into seven colours: Violet, Indigo, Blue, Green, Yellow, Orange, Red (VIBGYOR). Violet bends most (maximum deviation), red bends least (minimum deviation). This separation is called dispersion. Mark angle of deviation for different colours. Mastering this important diagrams for class 10 science is crucial for understanding light dispersion.

6. Electric Circuit – Series Connection

Draw components (resistors, bulbs) connected in single loop with battery and switch. Current remains constant throughout (I₁ = I₂ = I₃). Total voltage divides among components (V = V₁ + V₂ + V₃). Total resistance is sum of individual resistances (R = R₁ + R₂ + R₃). If one component fails, entire circuit breaks. Use proper circuit symbols and show current direction with arrows. This fundamental all important diagrams of class 10 science concept appears frequently in physics.

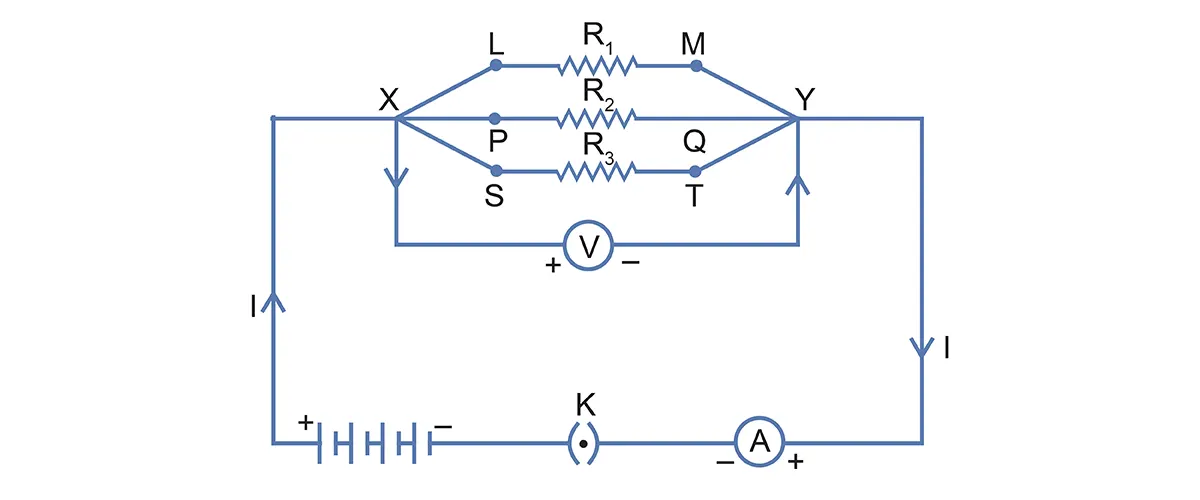

7. Electric Circuit – Parallel Connection

Draw components connected across common junction points with separate branches. Voltage across each component remains same as source voltage (V₁ = V₂ = V₃ = V). Current divides among branches (I = I₁ + I₂ + I₃). Each component operates independently. Total resistance is less than smallest individual resistance (1/R = 1/R₁ + 1/R₂ + 1/R₃). Show ammeter and voltmeter connections. Understanding this important diagrams for class 10 science helps solve complex circuit problems.

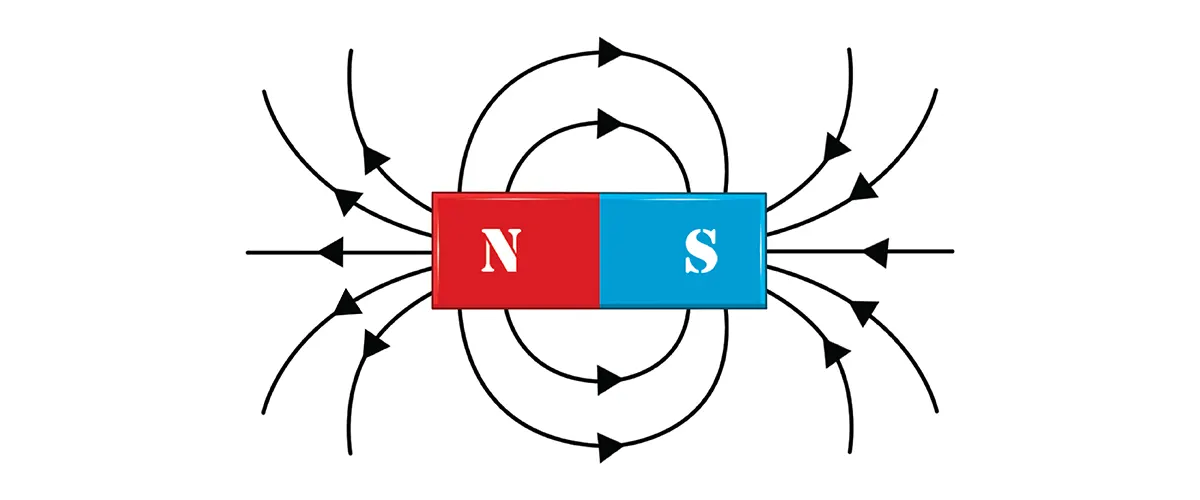

8. Magnetic Field Lines around Bar Magnet

Draw rectangular bar magnet with N and S poles clearly marked. Magnetic field lines emerge from North pole and enter South pole, forming closed loops. Lines are denser near poles showing stronger magnetic field. Field lines never intersect. Outside magnet, lines go from N to S; inside magnet, they go from S to N. Use iron filings pattern or compass needle directions to show field line directions. This science all diagrams class 10 topic requires precise field line pattern drawing.

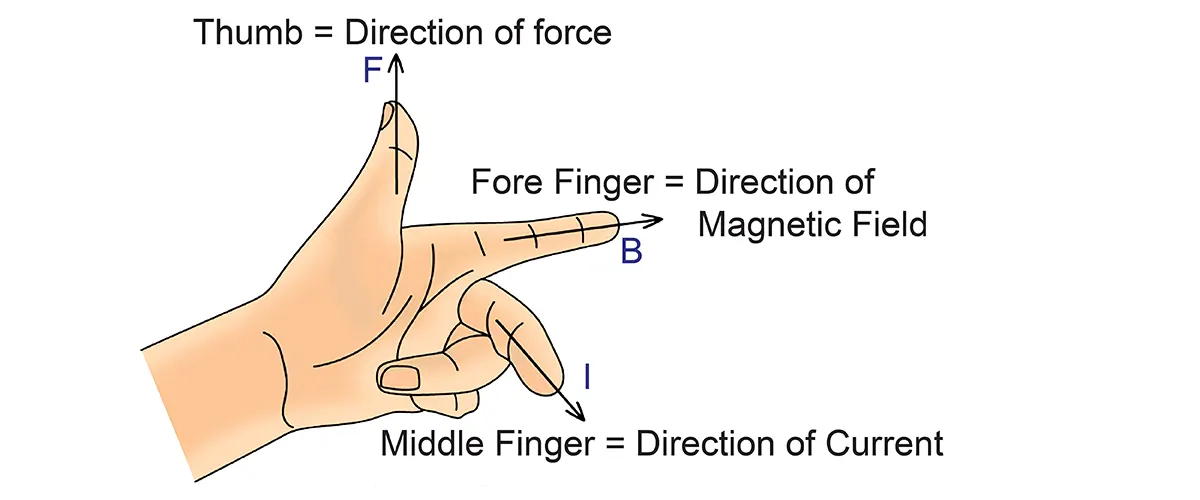

9. Fleming’s Left-Hand Rule

Draw left hand with three fingers positioned perpendicular to each other. Thumb points in direction of force (motion) experienced by conductor. First finger points in direction of magnetic field (North to South). Middle finger points in direction of conventional current flow (positive to negative). This rule determines force direction on current-carrying conductor in magnetic field. Essential for understanding motor principle. Students must practice this important diagrams for class 10 science repeatedly.

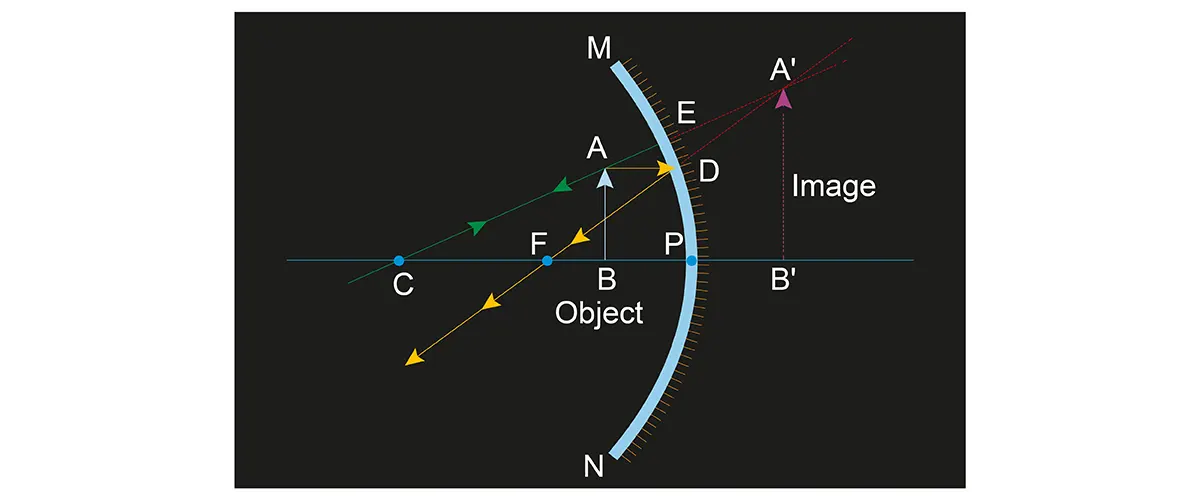

10. Image Formation by Concave Mirror

Draw concave mirror with principal axis, centre of curvature (C), and focus (F). Show ray diagrams for different object positions: beyond C (real, inverted, diminished), at C (real, inverted, same size), between C and F (real, inverted, magnified), and at F (no image formed). Use two principal rays: ray parallel to axis reflects through focus; ray through focus reflects parallel to axis. Mark object distance (u), image distance (v), and focal length (f). This complex diagrams of class 10 science requires understanding ray tracing principles.

Must Buy: CBSE Class 10 Most Likely Question Bank

CBSE Class 10 Science Important Diagrams – Chemistry

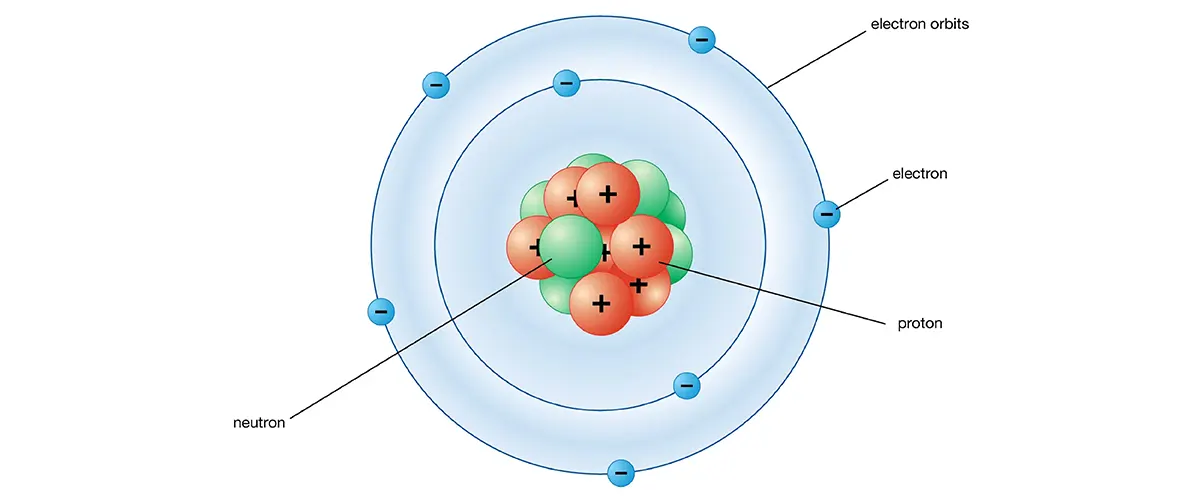

1. Atomic Structure (Bohr’s Model)

Draw atom with nucleus at centre containing protons (positive charge) and neutrons (no charge). Electrons revolve in fixed circular orbits around nucleus. Label shells as K, L, M, N from inside out. K shell holds maximum 2 electrons, L shell holds 8, M shell holds 18. Show electrons as dots in respective shells. Nucleus is much smaller than atom but contains most mass. This foundational important diagrams for class 10 science forms basis for understanding chemical bonding.

2. Electron Distribution in First 20 Elements

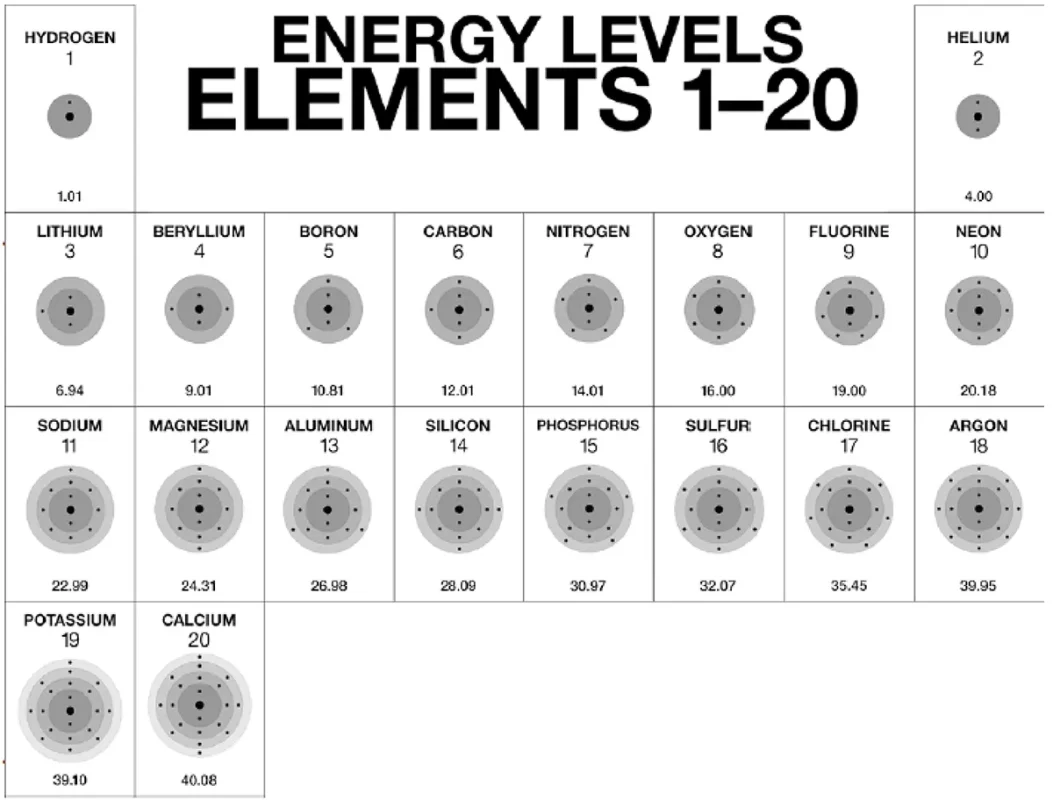

Create table showing electronic configuration for elements 1-20. Hydrogen (1): 1 electron in K shell. Helium (2): 2 electrons in K shell (complete). Lithium (3): 2 in K, 1 in L shell. Follow 2, 8, 8, 2 rule. Noble gases (He, Ne, Ar) have complete outer shells. Show how valency depends on outermost shell electrons. This systematic all diagrams of class 10 science approach helps understand periodic trends.

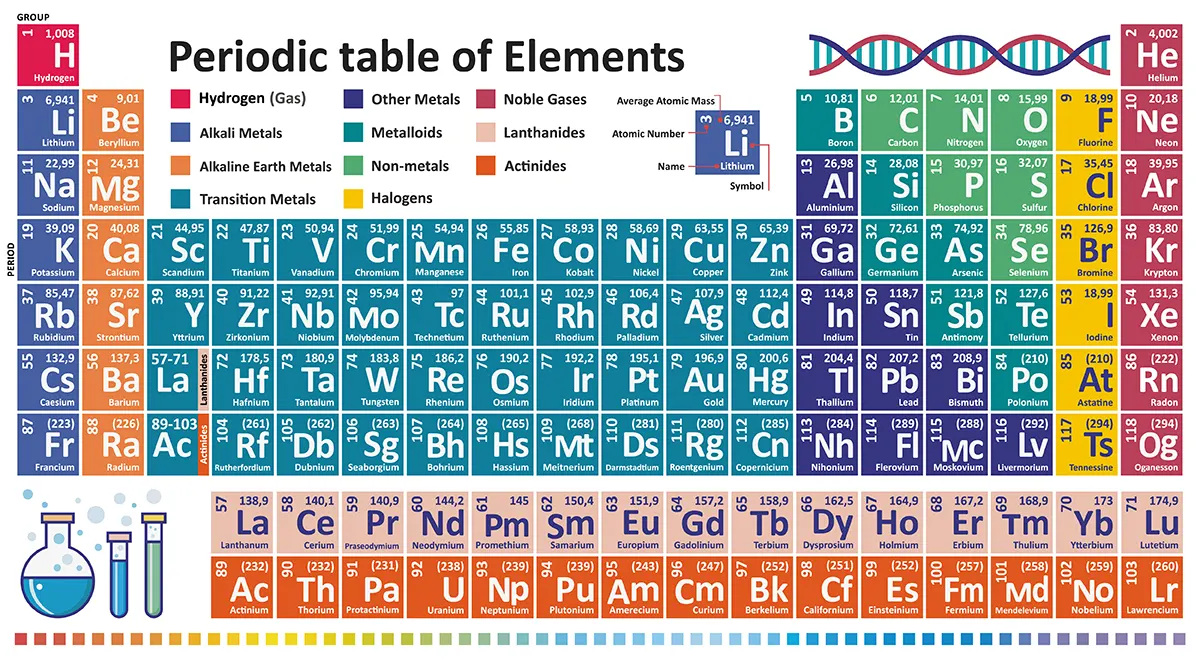

3. Periodic Table Layout

Draw modern periodic table with 18 vertical groups and 7 horizontal periods. Group 1: alkali metals, Group 2: alkaline earth metals, Groups 3-12: transition metals, Group 17: halogens, Group 18: noble gases. Periods show elements with same electron shells. Metals occupy left side, non-metals on right, metalloids form zigzag line between them. Understanding this important diagrams for class 10 science is essential for predicting element properties.

4. Formation of Ionic Bond (NaCl)

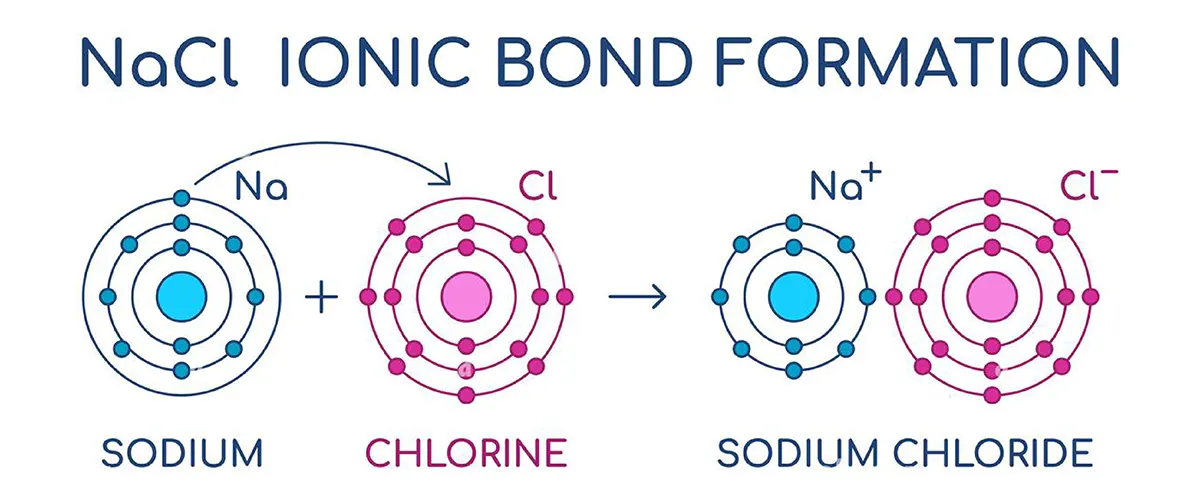

Draw sodium atom (2,8,1) losing one electron to become Na⁺ ion (2,8). Chlorine atom (2,8,7) gains electron to become Cl⁻ ion (2,8,8). Both achieve stable octet configuration. Show electrostatic attraction between oppositely charged ions forming ionic bond. Represent electron transfer with arrows and show final ionic compound NaCl. This science important diagrams for class 10 illustrates fundamental ionic bonding concept.

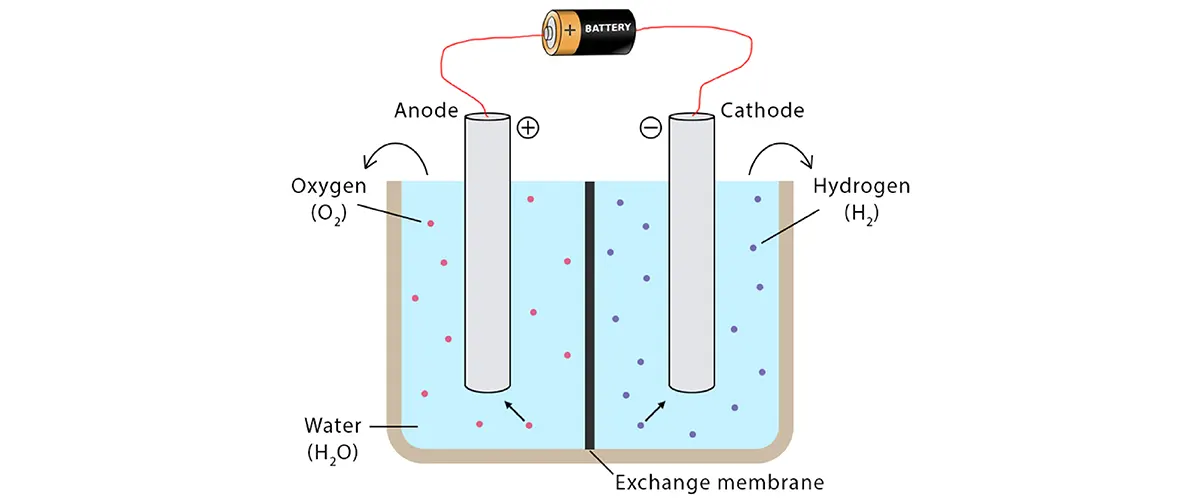

5. Electrolysis of Water

Draw apparatus with two test tubes inverted over platinum electrodes in water containing dilute sulphuric acid. Connect electrodes to battery terminals. Oxygen gas collects at anode (positive electrode), hydrogen gas at cathode (negative electrode). Volume ratio H₂:O₂ = 2:1. Show gas collection by downward displacement of water. This experimental important diagrams for class 10 science demonstrates water molecule composition.

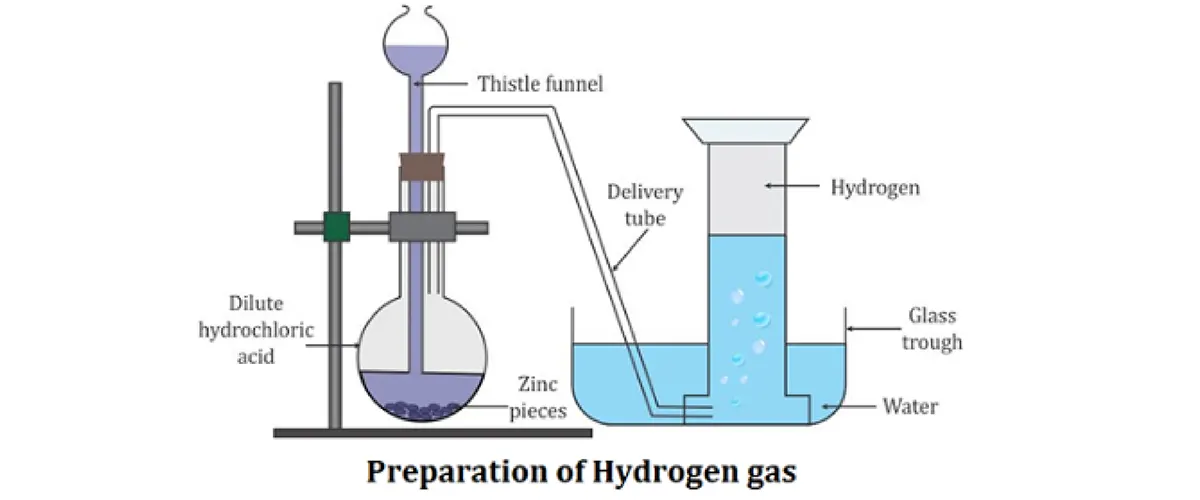

6. Laboratory Preparation of Hydrogen Gas

Draw flat-bottom flask containing zinc granules with thistle funnel for adding dilute hydrochloric acid. Gas delivery tube connects to gas jar for collection by downward displacement of water. Include safety features like gas trap to prevent back suction. Chemical equation: Zn + 2HCl → ZnCl₂ + H₂. Show hydrogen gas bubbles and water level changes.

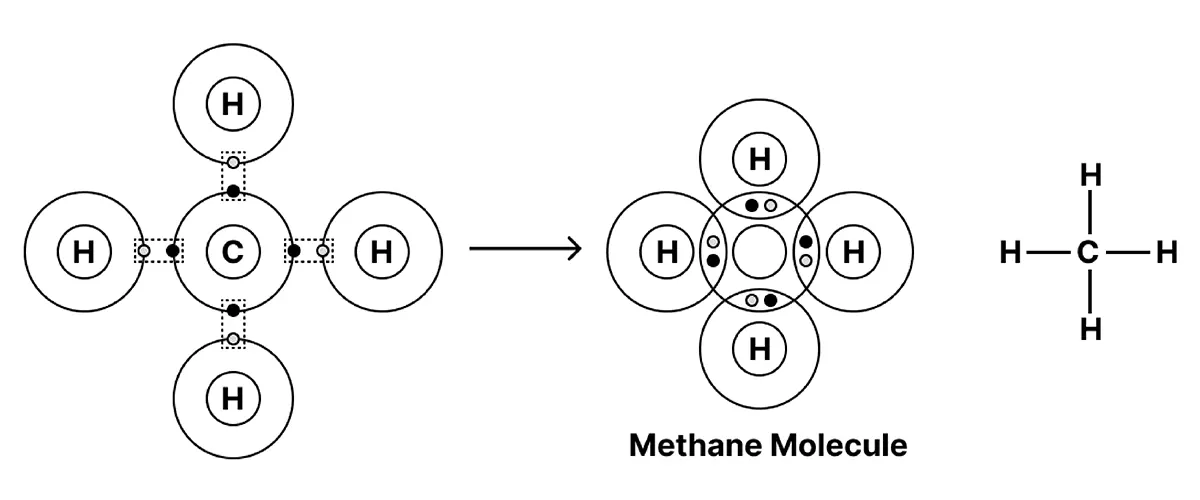

7. Carbon Bonding in Methane (CH₄)

Draw carbon atom at centre with four hydrogen atoms around it. Show each C-H bond as shared electron pair (covalent bond). Carbon has 4 valence electrons, each hydrogen has 1 valence electron. By sharing, carbon completes octet, each hydrogen completes duplet. Represent bonds as lines between atoms or electron dot structure. Methane has tetrahedral geometry.

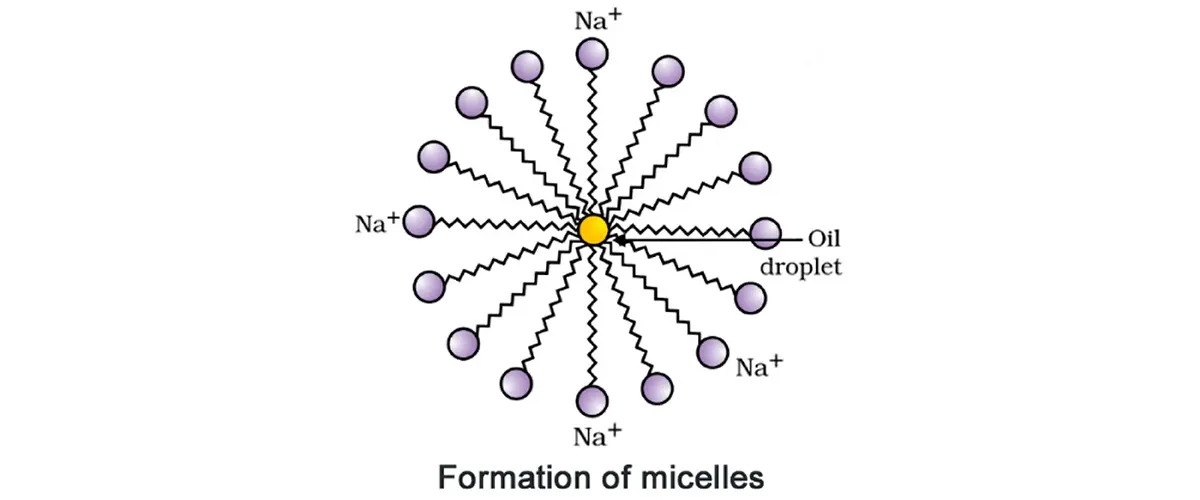

8. Soap Micelle Formation

Draw spherical structure with soap molecules arranged radially. Each soap molecule has hydrophilic head (water-loving, ionic) pointing outward toward water and hydrophobic tail (water-repelling, hydrocarbon chain) pointing inward toward oil droplet. Oil/dirt trapped in centre of micelle. This structure allows soap to lift oil and dirt from surfaces.

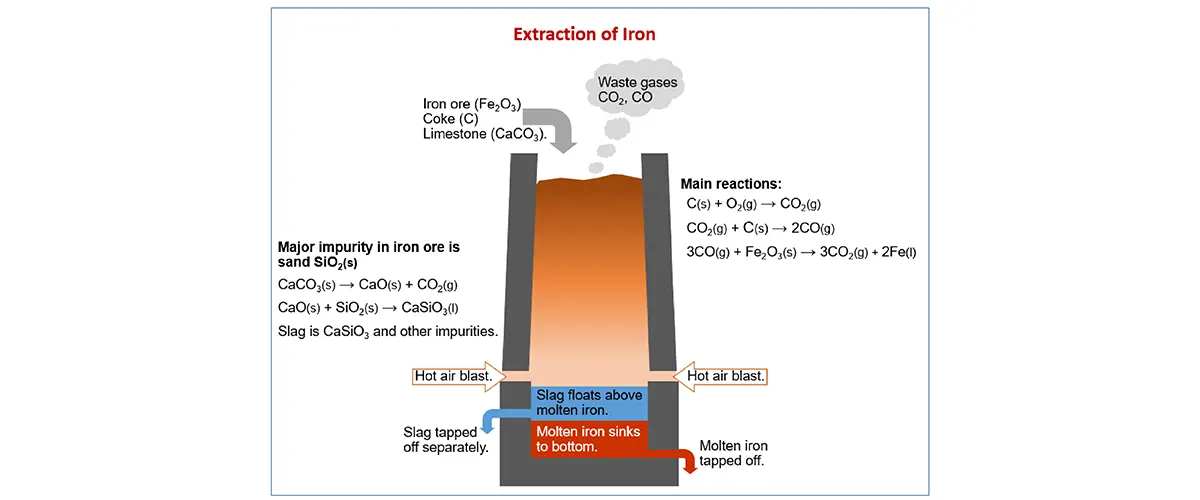

9. Extraction of Iron from Haematite

Draw tall cylindrical blast furnace with different temperature zones. Raw materials (iron ore Fe₂O₃, coke, limestone) added from top. Hot air blown from bottom. Reduction zone (700°C): Fe₂O₃ + CO → Fe + CO₂. Fusion zone (1200°C): CaCO₃ → CaO + CO₂, CaO + SiO₂ → CaSiO₃ (slag). Molten iron collected at bottom, slag floats on top.

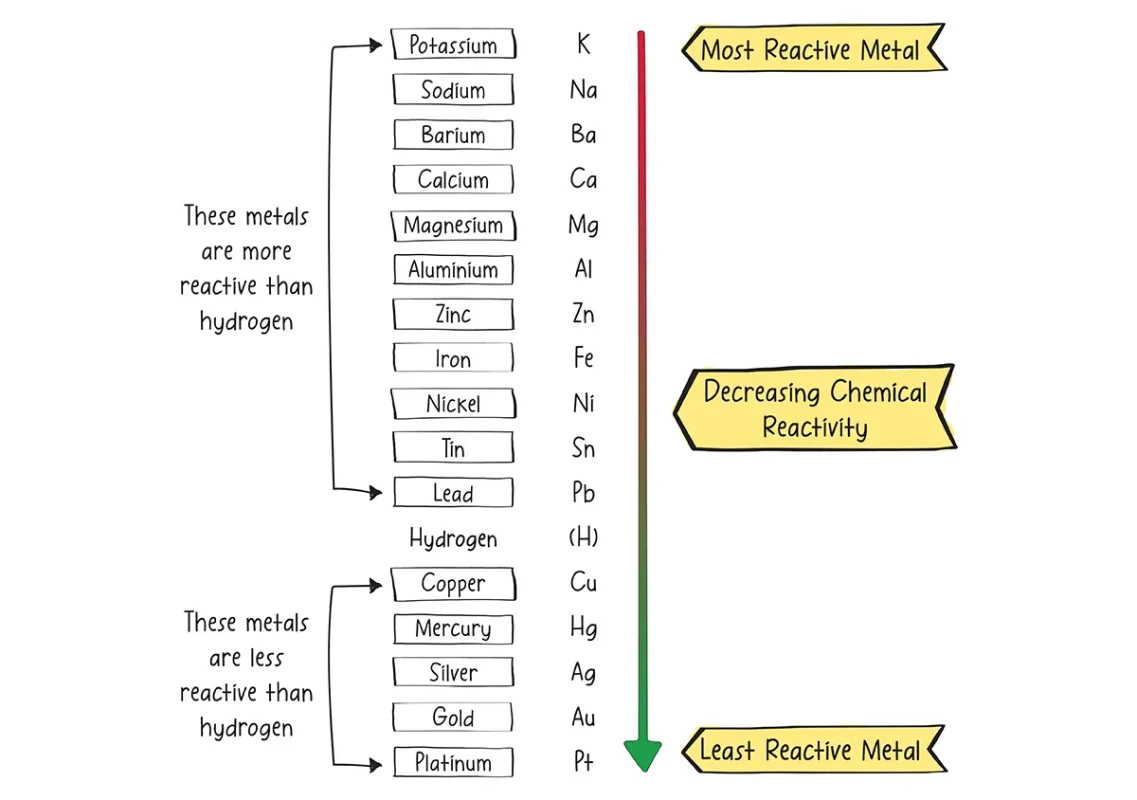

10. Activity Series of Metals

Draw vertical list with most reactive metals at top, least reactive at bottom. Order: K, Na, Ca, Mg, Al, Zn, Fe, Pb, (H), Cu, Hg, Ag, Au. Metals above hydrogen displace hydrogen from acids. More reactive metals displace less reactive metals from their salt solutions. This series helps predict whether displacement reactions will occur.

Also Learn: Maths Formulas for Class 10 – All Chapters

CBSE Class 10 Science Important Diagrams – Biology

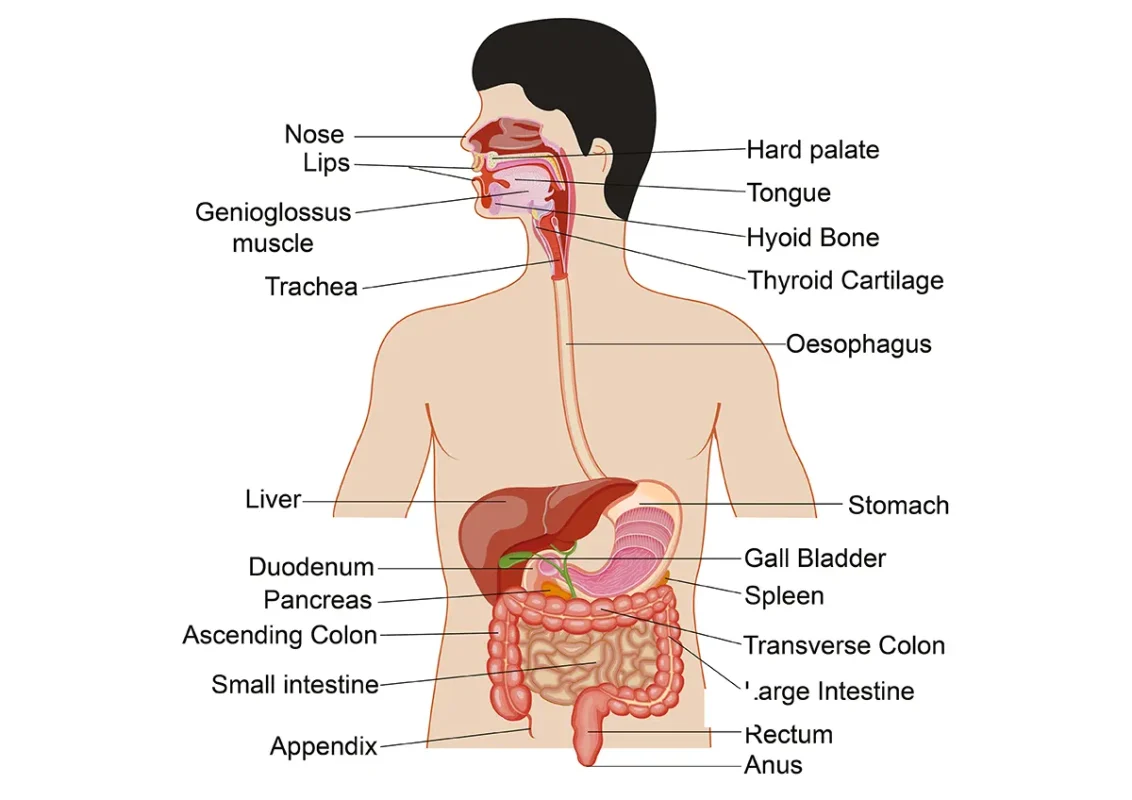

1. Human Digestive System

Draw complete alimentary canal from mouth to anus. Include salivary glands (secrete amylase for starch digestion), oesophagus (muscular tube with peristaltic movements), stomach (J-shaped, secretes HCl and pepsin), liver (largest gland, produces bile), pancreas (secretes pancreatic juice), small intestine (longest part with villi for absorption), and large intestine (absorbs water, forms faeces). Show food pathway and label each organ with primary function. This comprehensive important diagrams for class 10 science requires detailed understanding of digestive processes.

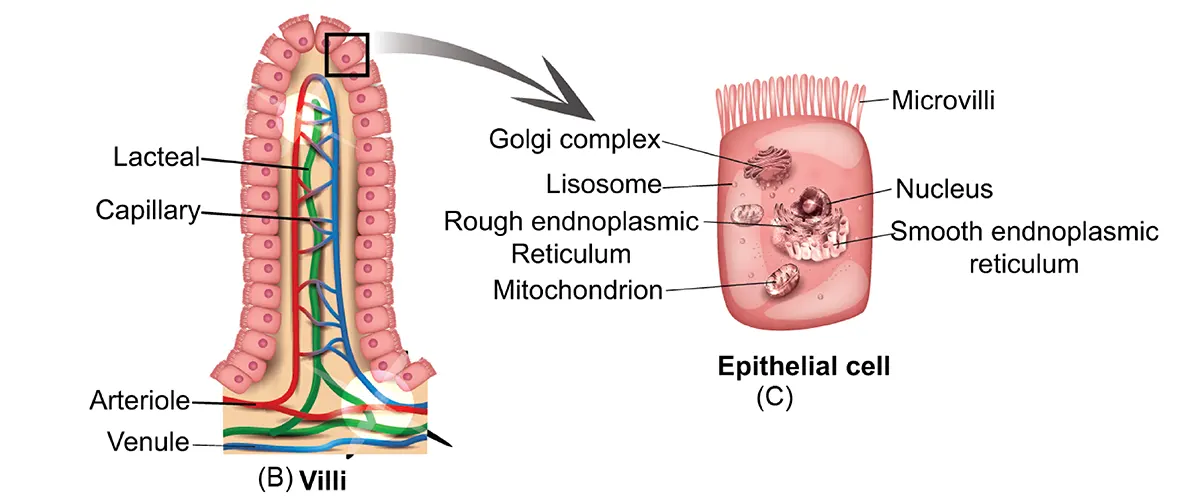

2. Structure of Villus

Draw finger-like projection from small intestine wall. Show single layer of epithelial cells forming outer surface. Inside, draw network of blood capillaries for nutrient absorption and lacteal (lymphatic vessel) for fat absorption. Villi increase surface area from 30m² to 300m² for efficient absorption. Each villus has smooth muscle for movement. Absorbed nutrients enter bloodstream and transport to liver via hepatic portal vein.

3. Human Respiratory System

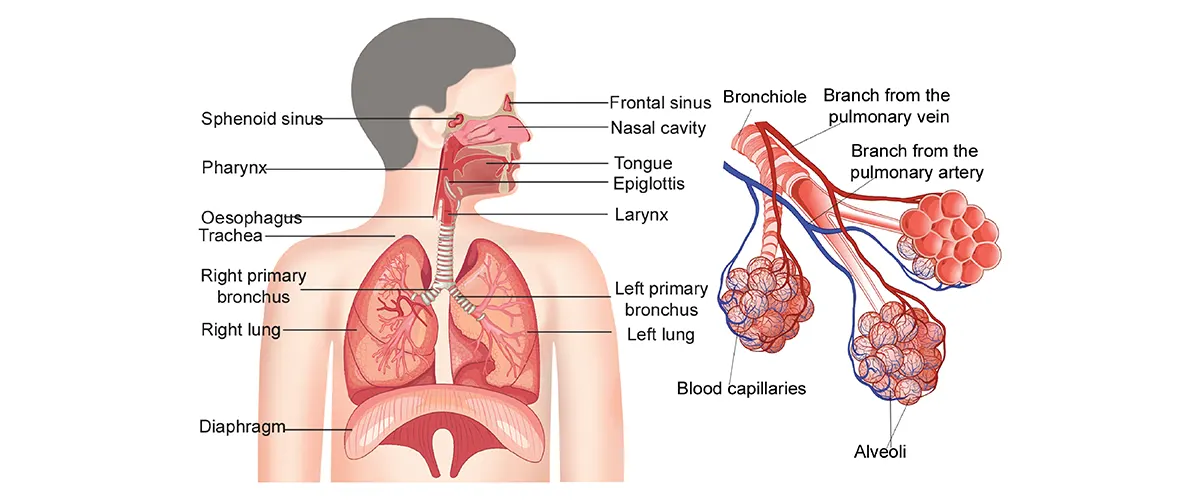

Draw respiratory pathway from nostrils to lungs. Include nasal cavity (filters, warms, moistens air), pharynx, larynx (voice box), trachea (windpipe with C-shaped cartilage rings), bronchi (two main branches), bronchioles (smaller branches), and alveoli (air sacs). Show diaphragm and rib cage for breathing mechanism. Label oxygen entry and carbon dioxide removal. This detailed important diagrams for class 10 science illustrates complete breathing process.

4. Structure of Alveolus

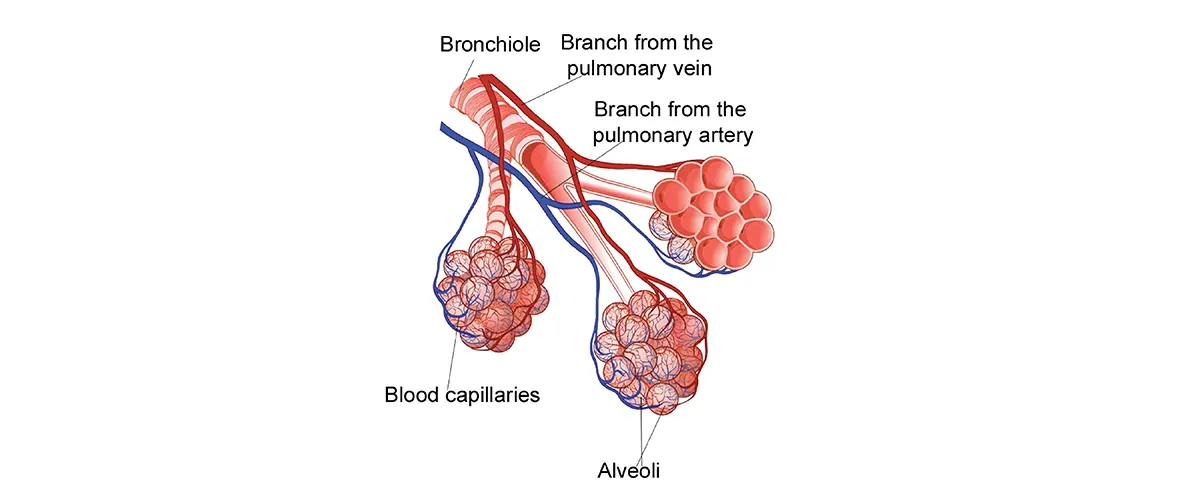

Draw balloon-like air sac with extremely thin walls (0.5 micrometers). Surround with dense network of blood capillaries. Show red blood cells passing through capillaries. Gas exchange occurs by diffusion – oxygen moves from alveolar air to blood, carbon dioxide moves from blood to alveolar air. Each lung has 300-400 million alveoli providing 70m² surface area for gas exchange.

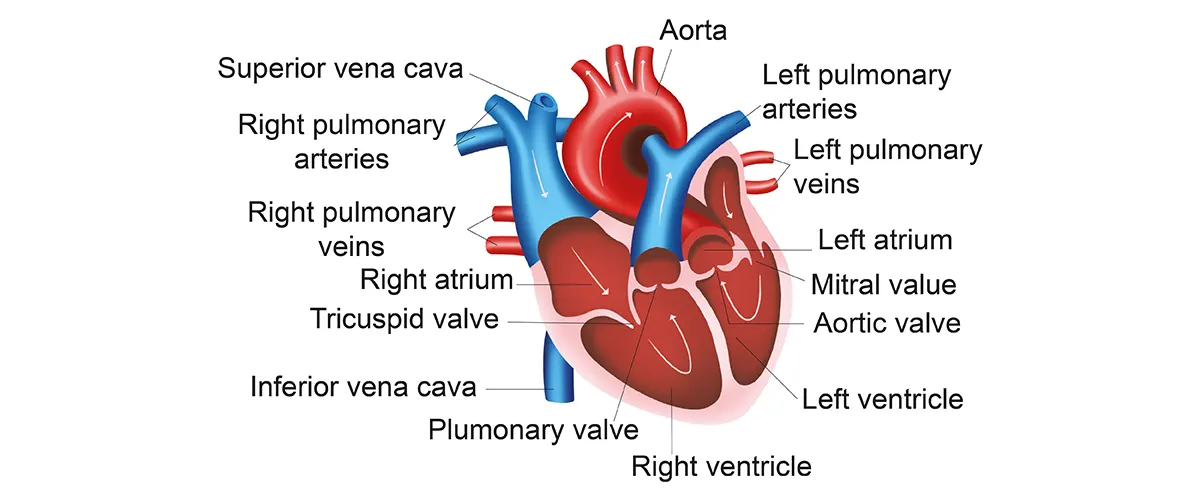

4. Human Heart Structure

Draw four-chambered heart with clear separation between chambers. Right atrium receives deoxygenated blood from body via vena cava. Right ventricle pumps blood to lungs via pulmonary artery. Left atrium receives oxygenated blood from lungs via pulmonary veins. Left ventricle (thickest chamber) pumps blood to body via aorta. Show tricuspid and bicuspid valves preventing backflow. Include pacemaker location in right atrium.

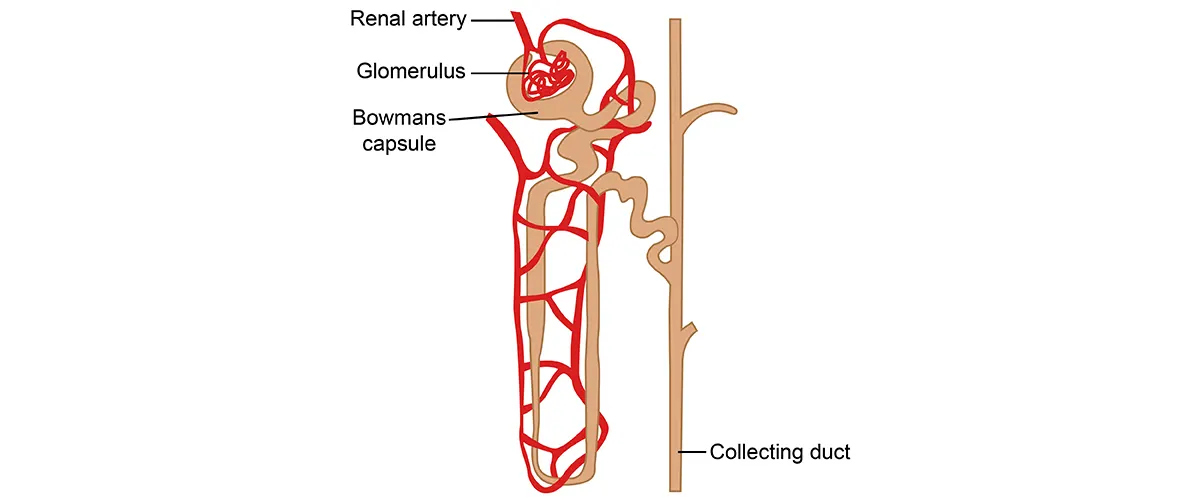

5. Structure of Nephron

Draw functional unit of kidney showing Bowman’s capsule (cup-shaped structure), glomerulus (cluster of blood capillaries inside capsule), proximal convoluted tubule, loop of Henle, distal convoluted tubule, and collecting duct. Show afferent arteriole bringing blood to glomerulus and efferent arteriole carrying blood away. Filtration occurs in glomerulus, reabsorption in tubules. Each kidney has about 1 million nephrons.

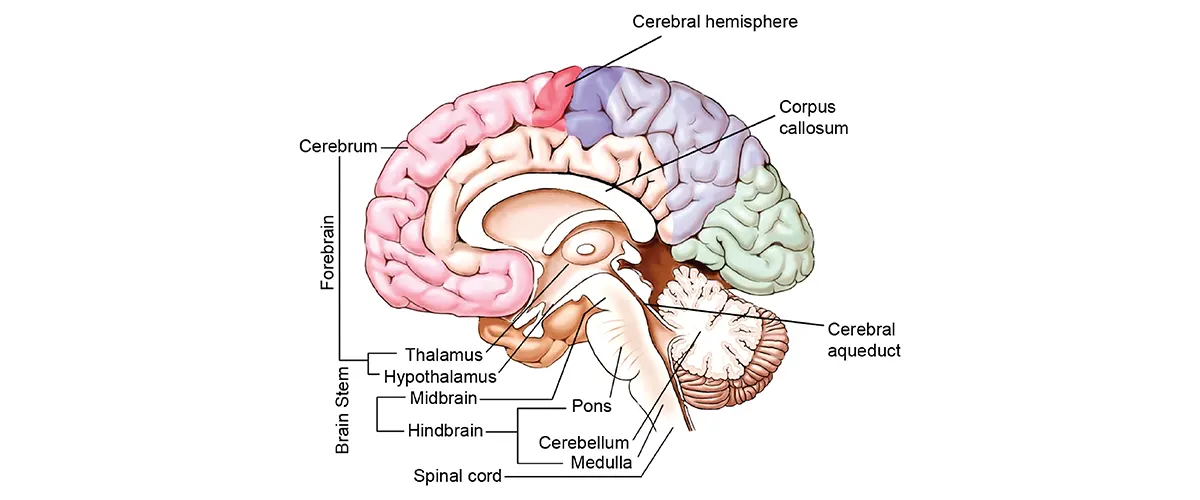

6. Human Brain Structure

Draw three main parts with clear boundaries. Forebrain includes cerebrum (thinking, memory, sensory processing) divided into left and right hemispheres, and diencephalon. Midbrain controls reflex actions like pupil size. Hindbrain includes cerebellum (balance, coordination) and medulla oblongata (breathing, heart rate, blood pressure). Show brain stem connecting to spinal cord. Total brain weight is about 1.4 kg with 100 billion neurons.

7. Structure of Neuron

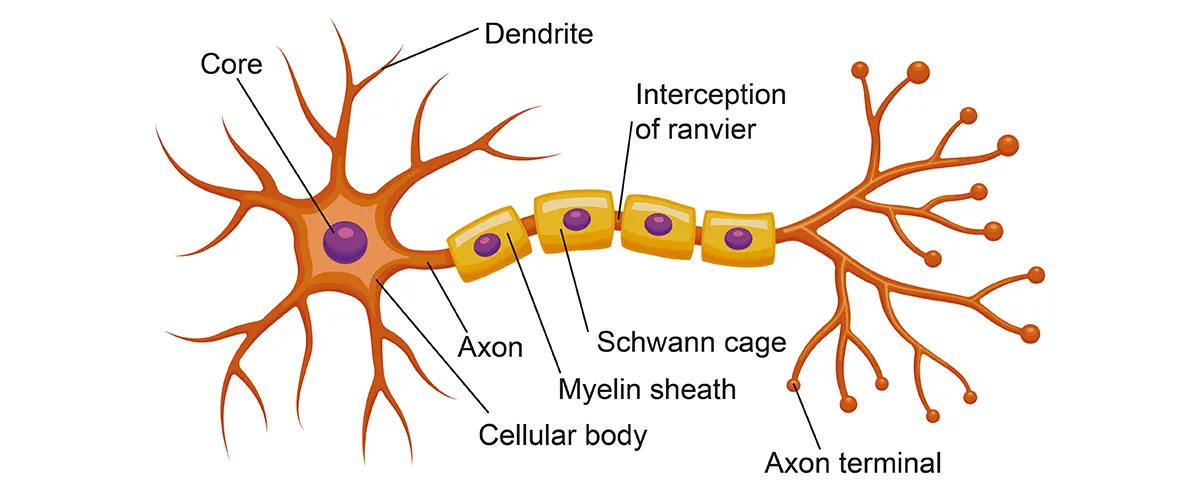

Draw nerve cell with cell body containing nucleus, multiple dendrites (receiving signals), long axon (transmitting signals), and axon terminals (releasing chemicals). Show myelin sheath around axon for faster conduction. Synapses are gaps between neurons where chemicals transmit signals.

8. Reflex Arc

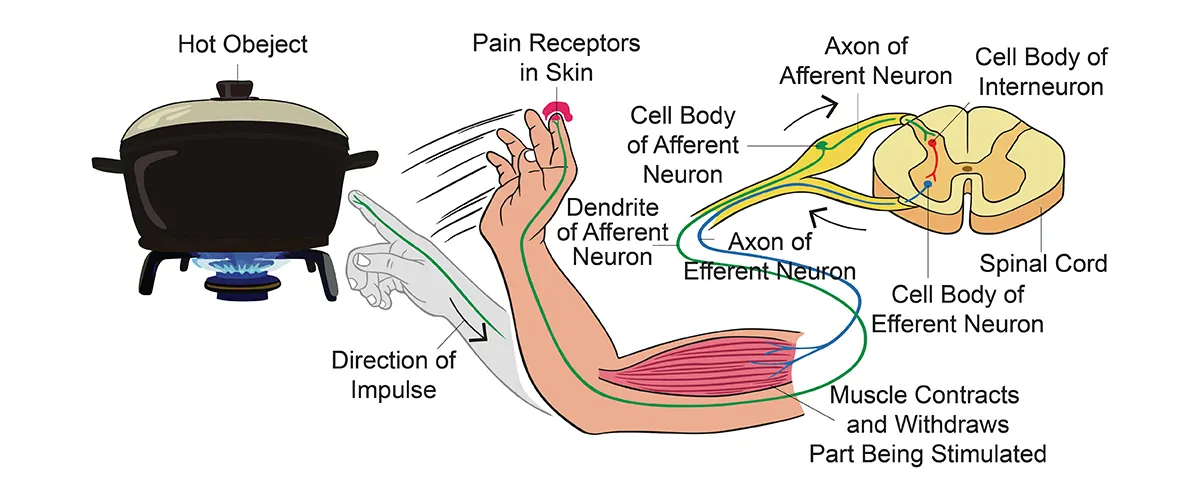

Draw complete pathway: stimulus → receptor (skin) → sensory neuron → spinal cord → motor neuron → effector (muscle) → response. Show synapse in spinal cord where sensory neuron connects to motor neuron. Brain is not involved, making response very quick (0.1-0.2 seconds). Include examples like knee jerk, touching hot object. Reflex actions are automatic and protective responses.

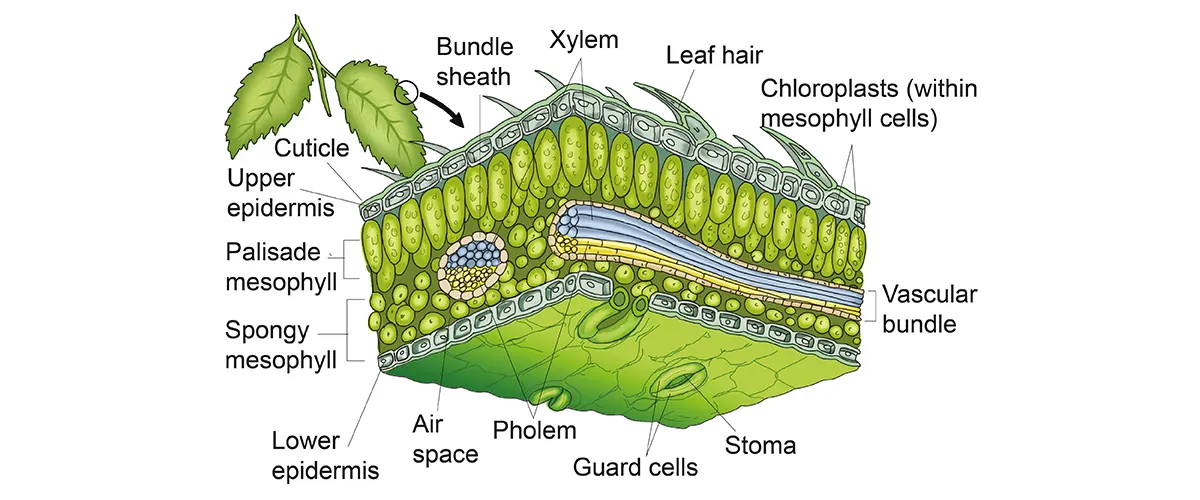

9. Cross-section of Leaf

Draw leaf section showing upper epidermis (protective layer), palisade mesophyll (tightly packed cells with many chloroplasts for photosynthesis), spongy mesophyll (loosely arranged cells for gas exchange), lower epidermis with stomata (pores for gas exchange), and vascular bundles (xylem for water transport, phloem for food transport). Guard cells control stomata opening. Waxy cuticle prevents water loss.

Why Learn Class 10 Science Diagrams?

Important diagrams for class 10 science are your shortcut to scoring easy marks in Class 10 board exams.

• High Marks in Board Exams – Diagrams carry 3-5 marks each in CBSE Class 10 Science papers.
• Better Understanding – Visual learning helps remember complex processes like photosynthesis and respiration.
• Time Saving – Drawing diagrams is a faster way of explaining answers than writing long answers.
• Compulsory Questions – At least 2-3 diagram questions appear in every board exam.
• Concept Clarity – Makes difficult topics like human heart, plant reproduction easy to understand.

Tips & Techniques to Remember Diagrams

Learning diagrams becomes easy when you use the right tricks and practice methods.

• Practice Daily – Draw 2-3 diagrams every day for 15 minutes.
• Use Colors – Different colors for different parts make diagrams memorable.
• Trace Method – Put transparent paper over textbook diagrams and trace them.
• Connect with Real Life – Link diagrams to things you see daily (like flowers, leaves).
• Regular Revision – Review all diagrams weekly to keep them fresh in memory.
